ELECTRONIC ENCLOUSRE 1

Designing of Jigs and fixturing for subtractive manufacturing and defining manufacturing statergies

3d Modelling | Product development | Manufacturing | CNC programming

Hero Section

Software Used:
Solidworks 2019 | 2024
Autodesk Fusion 360 2024

This part was developed by leveraging manufacturing concepts and design principles

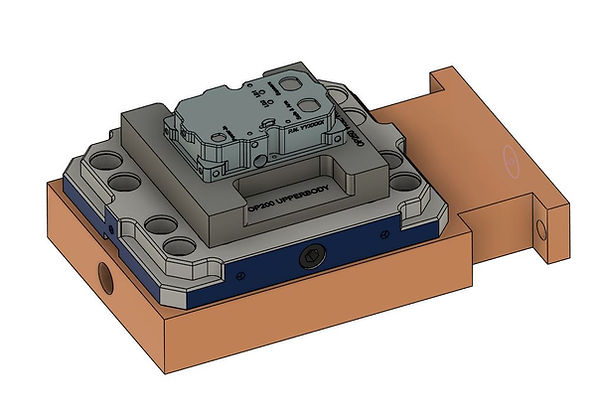

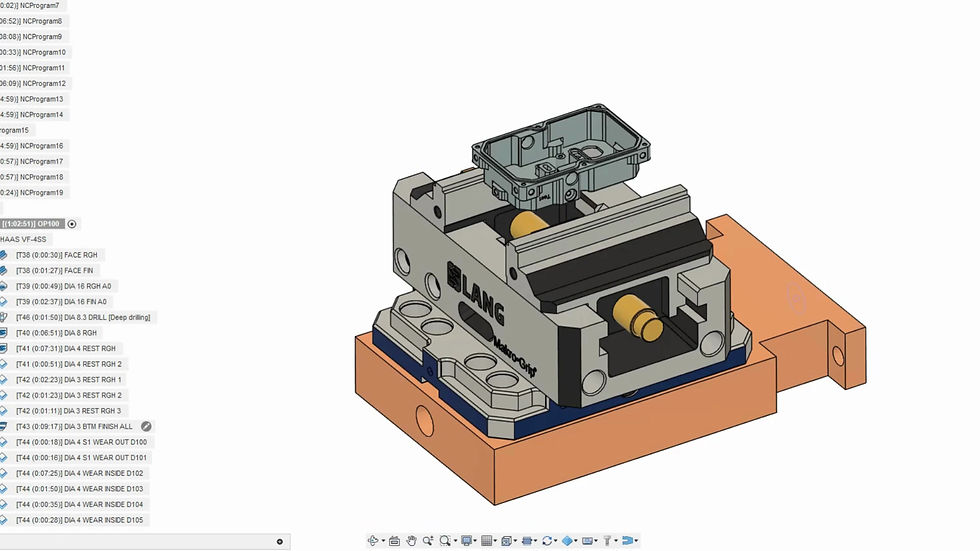

The special fixture is designed for clamping the operational material into specific orientation for CNC machining to develop the required part into least amount of setups and orientations to increase production and reduce machining and setup times.

  • 3D modelling

  • Jigs and Fixturing

  • 2D drawings

  • Understanding of CNC Machine

  • Manufacturing

  • CNC Programming



Results

This fixture was used in mass production of the given aluminum enclosure and which lead in 40% reduced setups times, Orientation times and overall reduction in cycle times for production.
